Add basic graphical environment to Parallella Board
Demo video: https://www.youtube.com/watch?v=6gpM57qB-I8.
Requirements: Ubuntu PC and Parallella Board.
The following steps should be performed in Parallella Board.
Install LXDE
$ sudo apt-get install alsa-base alsa-utils libasound2-plugins lxde x11-xserver-utils xserver-xorg xserver-xorg-video-fbdev xserver-xorg-video-modesetting feh xinit
Disable PCManFM Desktop mode (for faster displaying)
$ sudo nano /etc/xdg/lxsession/LXDE/autostart
Delete the line
Xorg configuration
Insert:
$ sudo nano /etc/X11/xorg.conf
The last command should show something like:
Section "Device"
Identifier "Card0"
Driver "modesetting"
Option "ShadowFB" "True"
Option "SWCursor" "True"
Option "HWCursor" "False"
EndSection
Section "Screen"
Identifier "Screen0"
Device "Card0"
SubSection "Display"
#---- Uncomment your preferred mode ----
#Modes "1920x1200"
#Modes "1920x1080"
Modes "1280x720"
#Modes "640x480"
EndSubSection
EndSection
ALSA configuration
$ nano ~/.asoundrc
Copy, paste and save:
pcm.!default {
type rate
slave {
pcm "hw:0"
rate 48000
}
converter "samplerate"
}
Then:
$ sync
$ sudo reboot
Start X environment
On Ubuntu PC, connect to Parallella Board with (we add -X to enable remote execution of applications):
$ ssh -X parallella@192.168.1.110
And then enter the graphical environment:
$ startlxde
Note: Correct some problem "/usr/bin/xauth: file /home/technical/.Xauthority does not exist".
Exit from SSH and reconnect to SSH, this can solve this problem.
Note: Correct some problem "Error: X11 connection rejected because of wrong authentication", according to http://www.cyberciti.biz/faq/x11-connection-rejected-because-of-wrong-authentication/:
Make sure ~/.Xauthority owned by you.- Run following command to find ownweship:
$ ls -l ~/.Xauthority
Run chown and chmod to fix permission problems (replace user:group with your actual username and groupname):
$ chown user:group ~/.Xauthority
$ chmod 0600 ~/.Xauthority
Make sure X11 SSHD Forwarding Enabled.- Make sure following line exists in sshd_config file:
$ grep X11Forwarding /etc/ssh/sshd_config
Sample output:
X11Forwarding yes
Install media player
Insert the command:
$ sudo apt-get install smplayer
Launch smplayer, then:
Options->Preferences->Video->Output driver: x11.
Options->Preferences->Audio->Output driver: alsa.
Note: If appear the next message "libqtgui4", solve with: http://answers.ros.org/question/203610/ubuntu-14042-unmet-dependencies-similar-for-14043/:
$ sudo apt-get install libgl1-mesa-dev-lts-utopic
Logout and exit from LXDE
To exit, logout and reconnect with SSH, or only Ctrl+C.
Result

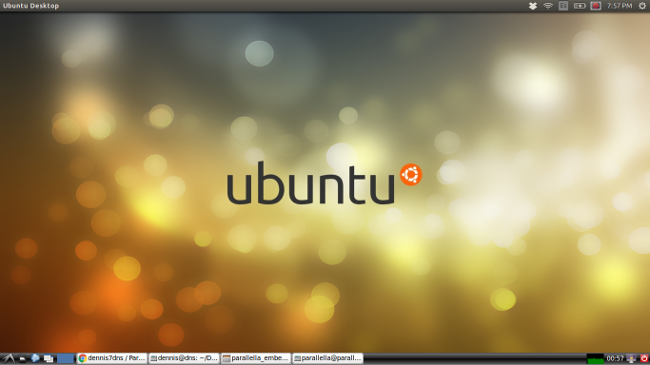

Start with graphical environment:
Resources
- http://elinux.org/Parallella_Linaro_Nano#How_to_Install_lightweight_X_environment.
- http://www.cyberciti.biz/faq/x11-connection-rejected-because-of-wrong-authentication/.
